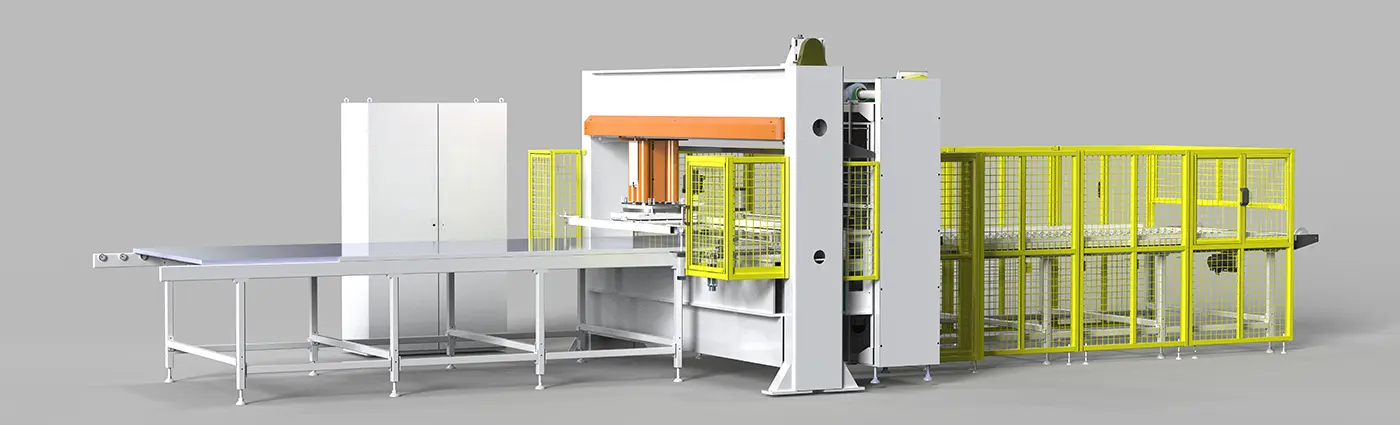

Automatic Travel Head Die Cutting Machine

Automatic Travel Head Die Cutting Machine

Travel head cutting machine with different automatic feeding methods for various cutting applications.

Inquire

Product Description
Specification
Product Feature
Related Application

Product Description

Travel head cutting machine is designed to cut non-metal materials(such as leather, rubber and cloth) with the help of cutting die mould.

Kuntai makes a variety of travel head cutting machines with difference automatic feeding methods, such as automatic sliding feeding table, automatic conveyor belt feeding, automatic pitch roller/clamp feeding:

● Automatic sliding feeding table: suitable for cutting both materials in sheets and materials in rolls. It is a type of relatively economic and continuous automatic cutting machine.

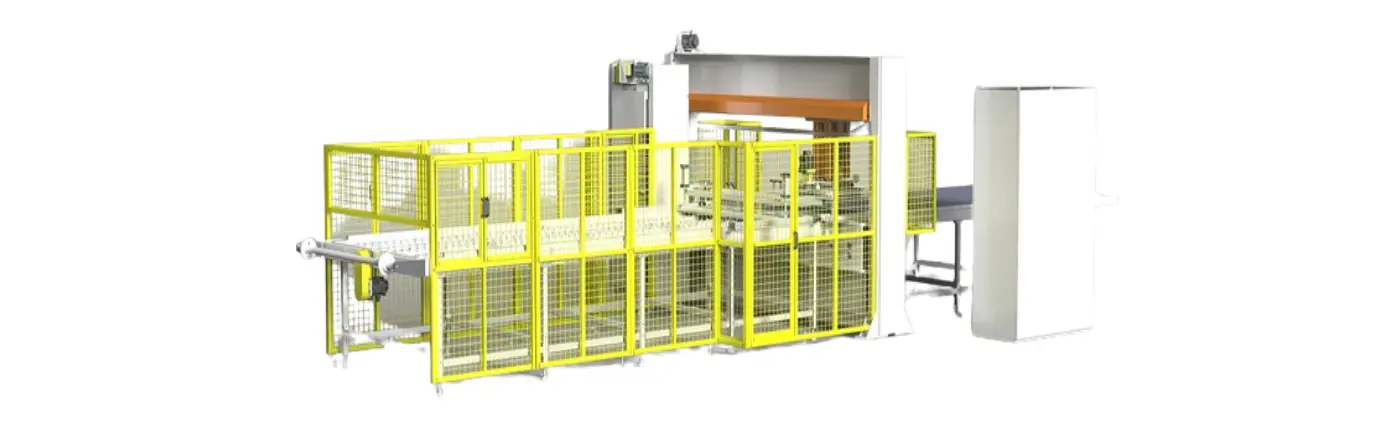

● Automatic conveyor belt feeding: suitable for both soft and hard materials in sheets and in rolls. It is a type of highly automatic and productive cutting machine.

● Automatic pitch roller/clamp feeding: suitable for some sort of rolled materials cutting. It is a type of compact and easy operating automatic cutting machine.

Specification

Max Cutting Force	25ton, 30ton,35ton, 40ton, 120ton, according to customers' requirement
Travel Head Size	400x400mm, 500x500mm, 650x650mm, 1000x1000mm, according to customers' requirement
Max Material Width	1450mm, 1500mm, 2000mm, according to customers' requirement
Automatic Feeding Method	Auto pitch roller/clamp feeding, automatic conveyor belt feeding, automatic sliding feeding table, according to customers' requirement
Unwinder Frame	For one roll, three rolls, six rolls, 10 rolls, customizable
Voltage	220v, 380v, Customizable
Control system	PLC/CNC
Varieties	a. With or without heating b. Rotating head or not c. PLC or CNC control d. Various die mould fixture designs available

Product Feature

1

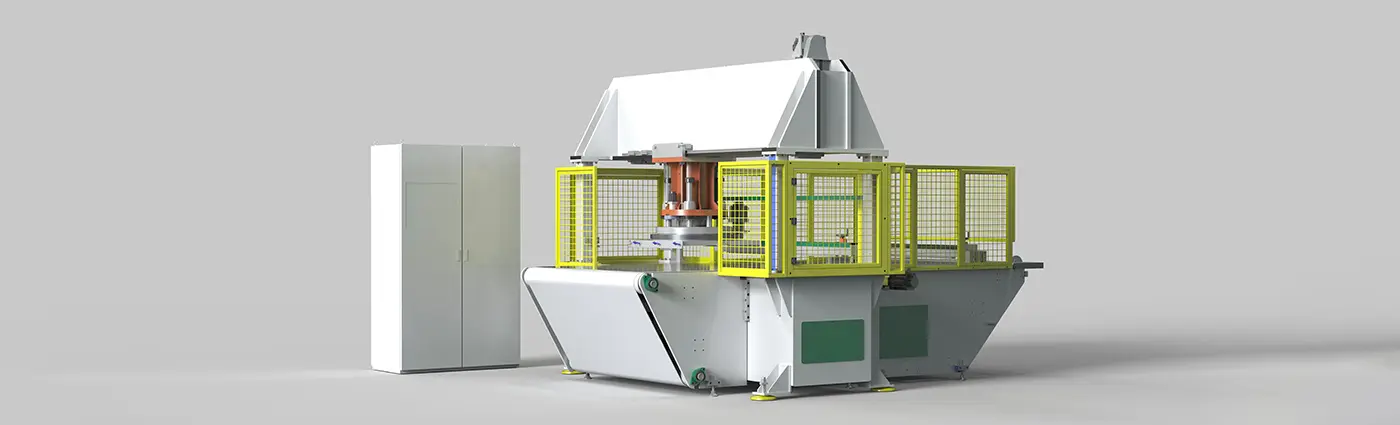

Gantry structure and four column type travel head cutting machines are available for choice.
2

Travel head can rotate to make better use of materials. Also automatic layout system can be applied for saving materials and labor.
3

Servo motor is adopted for the travel head so that its movement distance is precisely the same as what is preset.
4

The micro movement feature of the cutting board prolongs its service life.
5

Auto pitch roller/ clamp feeding, automatic conveyor belt feeding and auto sliding feeding table system use servo motor so that the materials feeding length is precisely the same as what is preset. Several layers of materials can be feed and cut precisely at the same time.
6

High quality hydraulic oil pump produces very low noise.
7

Flywheel energy storage tech helps realize high pressure cutting, saving power. The oil temp will not rise.
8

Hydraulic valve is straight way valve, enhancing cutting precision.
9

This machine can be highly automatic, providing high productivity.
10

Different specially designed multi- rolls unwinder frames available for different materials cutting.
11

The machine has memory function. For the cutting moulds, the material feeding data, travel head movement data can be stored and recalled. In future, just input the cutting mould serial number, the machine will recall previous data and work accordingly.
