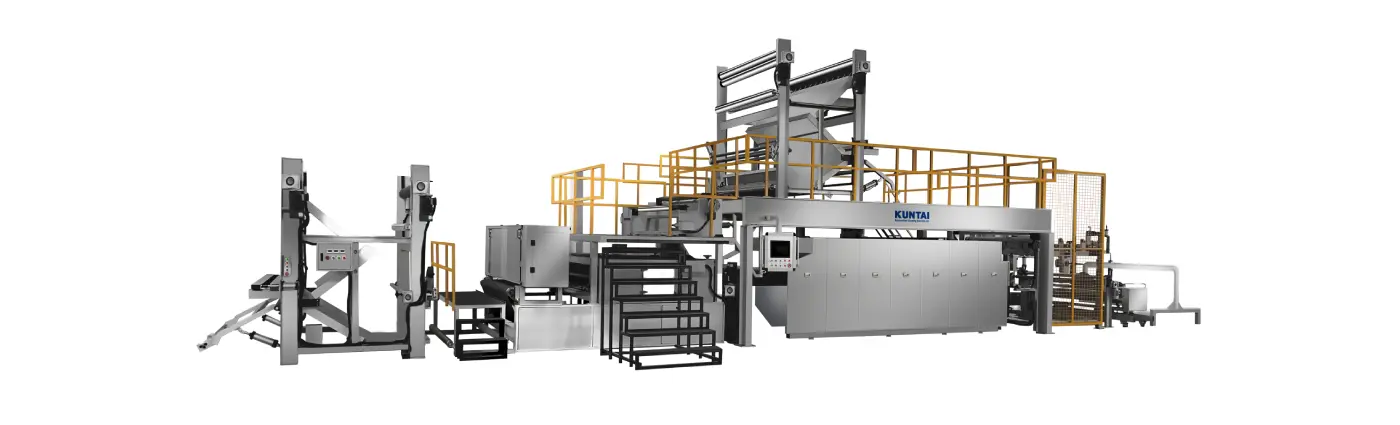

Double Belt Press Laminating Machine

A Versatile and Highly Efficient Continuous Press Laminating Machine with Precise Heating and Pressure Control.

Inquire

Product Description
Specification
Product Feature
Related Application

Product Description

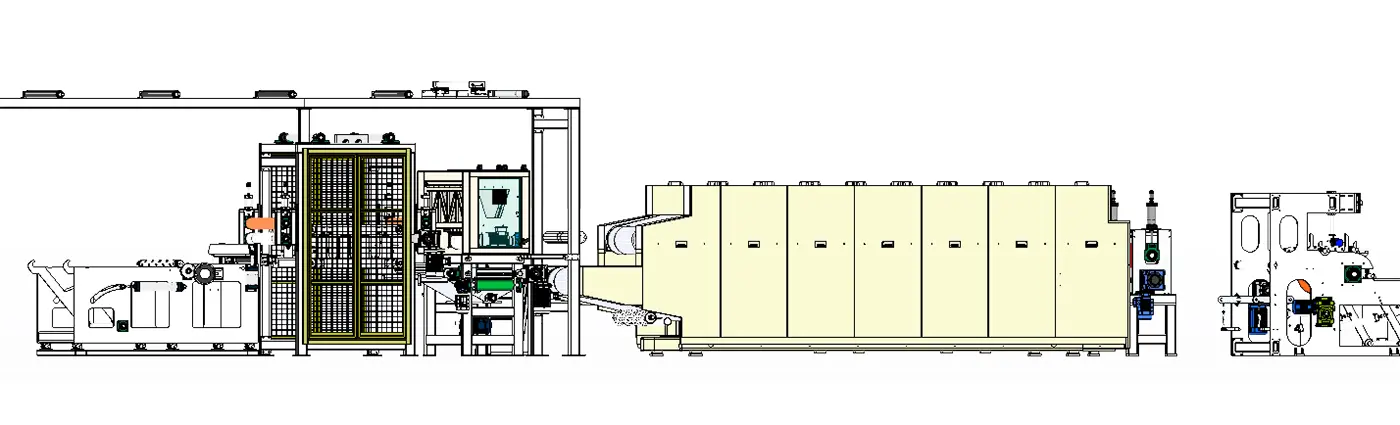

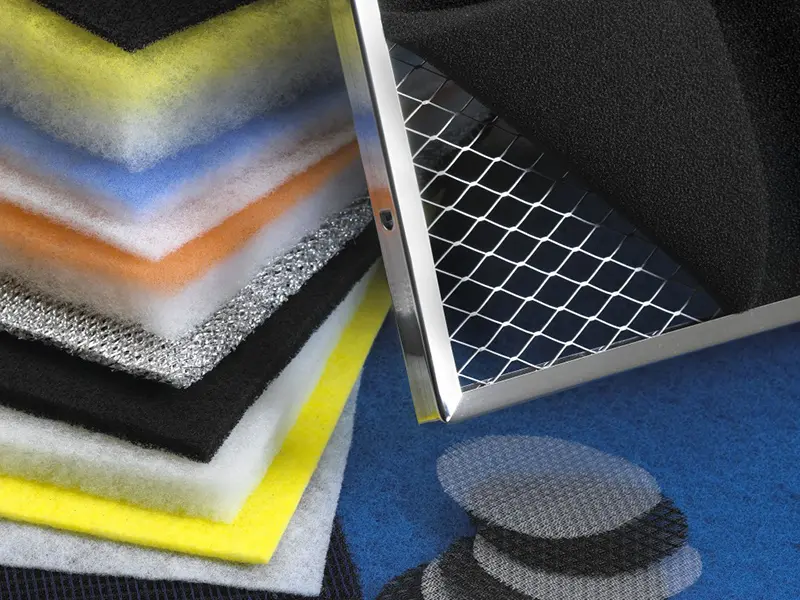

Kuntai's double belt press laminating machine is a highly efficient and versatile machine, used for continuous pressing and laminating or bonding different materials, such as films, fabrics, mats, foam, EVA and so on. The double belt conveyors method allows for the continuous production of sheet and plate materials as well.

Under the influence of certain process parameters such as pressure, heating temperature, cooling temperature, speed, and inlet/outlet clearance, thermoplastic adhesives can be used to bond, coat, or compress various materials in rolls or sheets. By considering the specific requirements of each application, the double belt press can be tailored to meet the diverse needs of different industries.

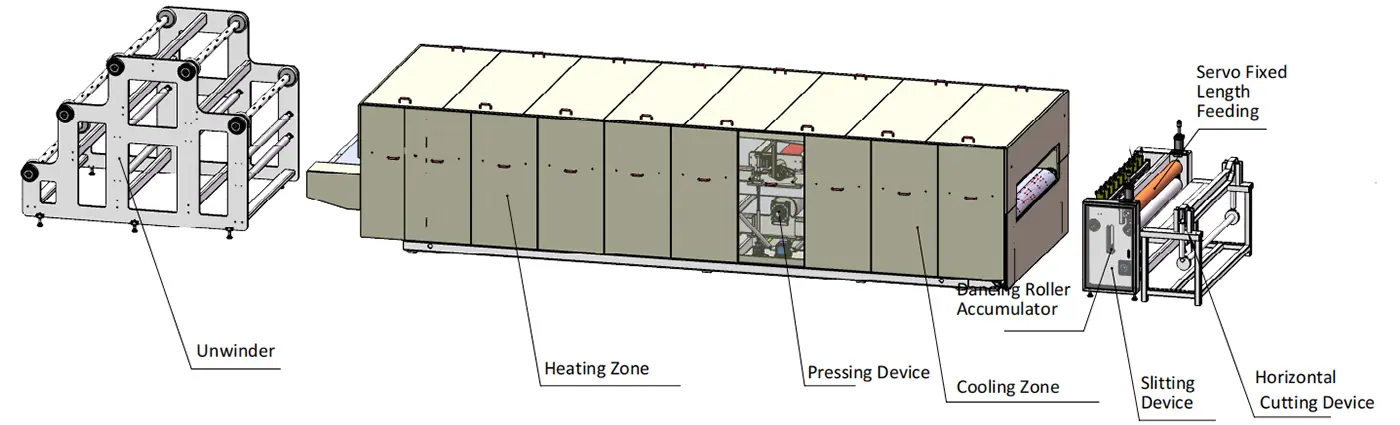

In order to avoid possible irregularities and ensure the uniformity of the composite material, the materials are slowly heated and pressurized in different heating areas to achieve the required performance, and then bonded together. The cooling system is also divided into multiple areas to ensure the suitable cooling effect of the product. Divided zones of heating and cooling play a decisive role here.

We provide height adjustable pressure rollers to meet the high pressure requirements for materials. This pair of pressure rollers is placed between the heating and cooling systems, and temperature control functions are available for choice.

Specification

Width	1100mm, 1300mm, 1500mm, 1600mm,1800mm, 2000mm, according to customers' requirement
Machine Speed	0.5 to 30m/min
Height Adjustment	0 to 150mm
Heating Zone	2500mm, 3000mm, according to customers' requirement
Cooling Zone	1500mm, 2000mm, according to customers' requirement
Control Zones	18
Machine Heating Power	120-380kw, Customizable
Voltage	220v, 380v, Customizable
Control system	Touch screen, PLC, servo motor
Varieties	a. Integrated heating and cooling zone b. Only with heating zone c. Only with cooling zone d. One set of pressing rollers or two sets

Product Feature

1

Temperature range from 20°C-230°C, individually adjustable in all zones. Flexible arrangement of heating elements and edge zone division of the entire heating system, minimizing variations and defect in the final output product.
2

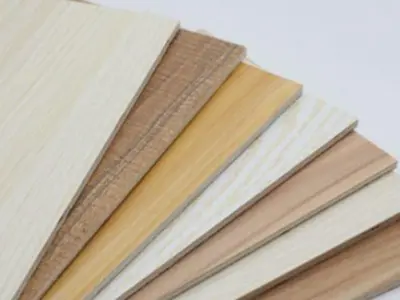

Different materials (rolls and sheets and panels)and different material thicknesses possible
3

Laminating of multilayer materials possible
4

For bonding, heat setting, alignment and/or surface consolidation
5

Working width between 300-3000 mm, customizable
6

Flexible machine structure. Various materials feeding methods, tension control methods, fixed length cutting methods and other devices are customizable.
7

Raw materials saving, precise position, faster speed, stable structure
8

Convenient, highly efficient, labor saving
9

Higher automation
