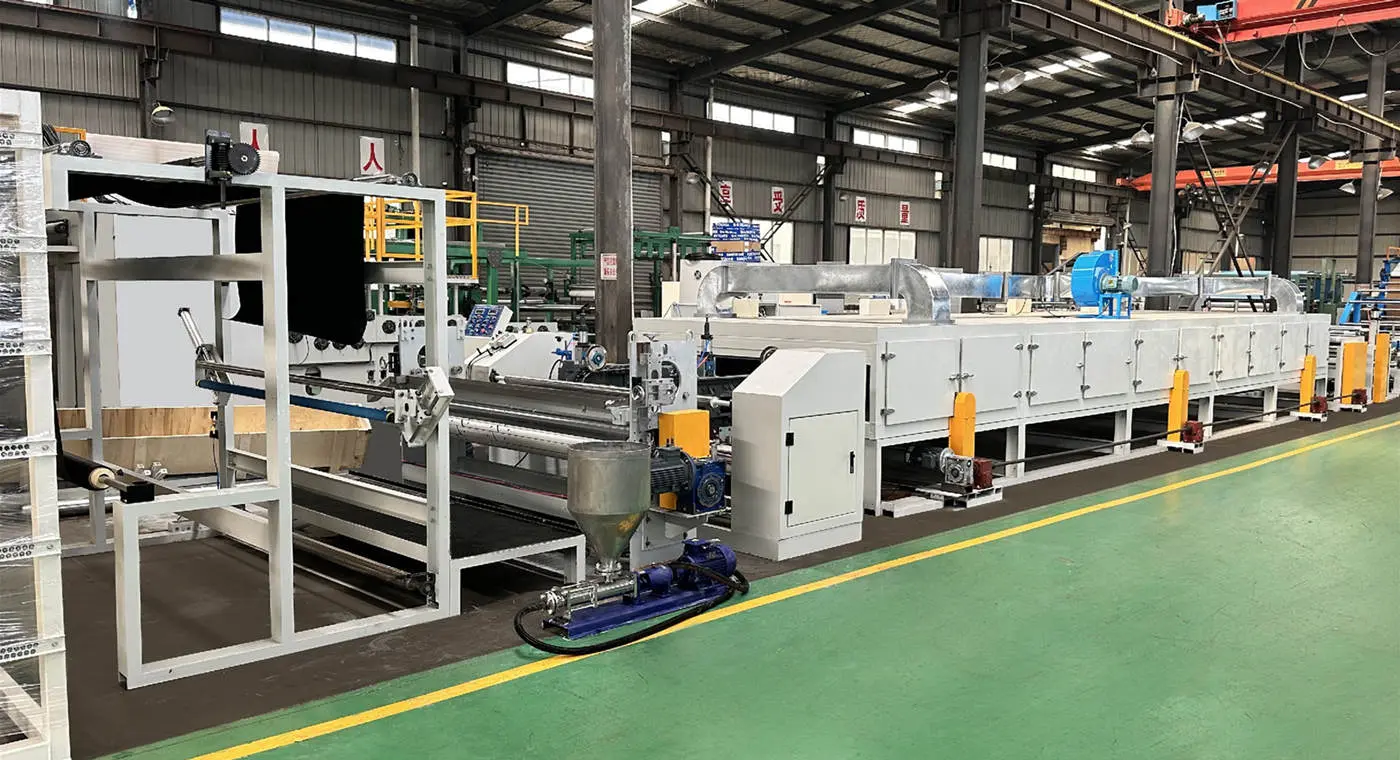

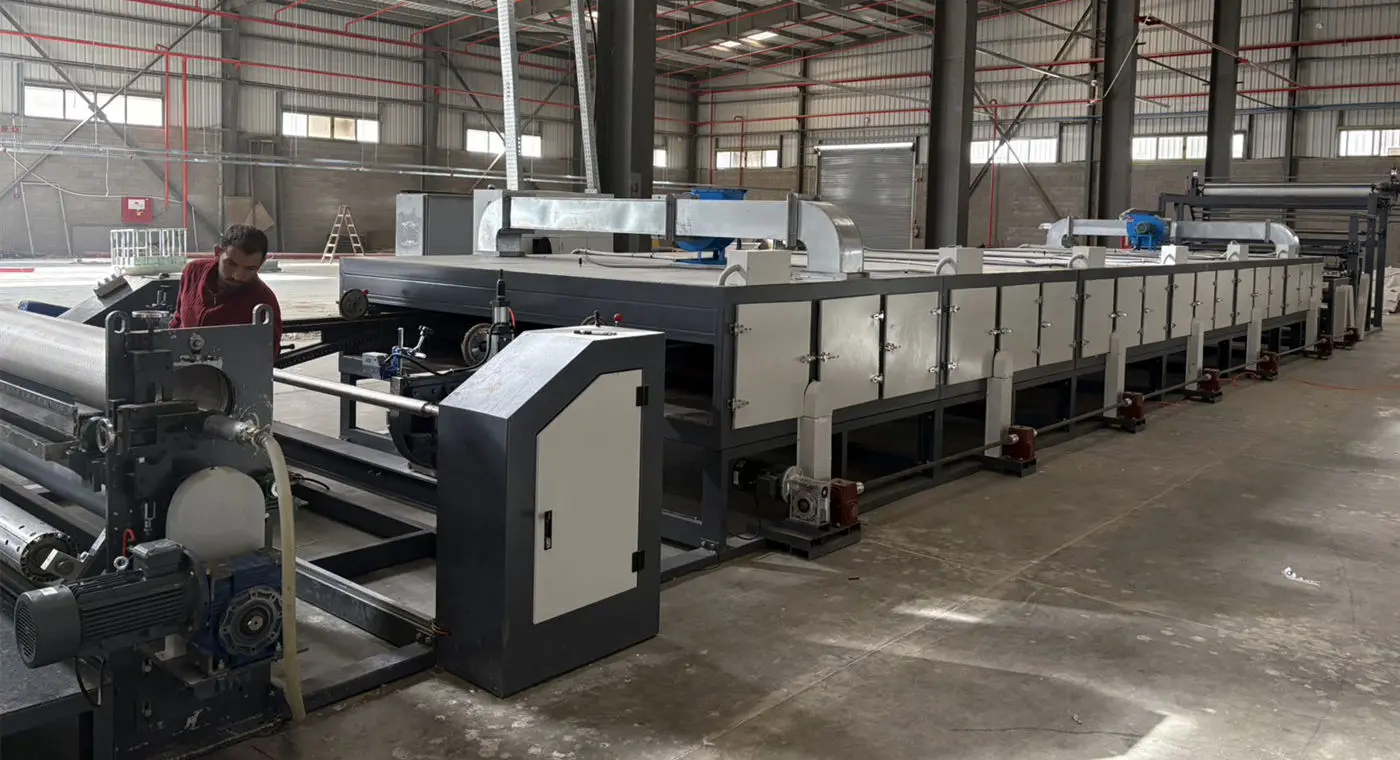

Antislip Dot Coating Lamination Machine

Antislip Dot Coating Lamination Machine for Nonslippery Carpet Underlay, Prayer Mat, Bath Mat.

Both PVC and silicone can be used on this dot coating lamination machine.

Inquire

Product Description
Specification
Product Feature
Related Application

Product Description

As people’s life is getting better and better, more and more people are not satisfied with flying carpets. Therefore comes a huge increasing demand for anti-slip underlay for rugs and carpets. These products are warmly welcomed in IKEA, Walmart, etc. Catering to this requirements, Kuntai has designed and manufactured this type of antislip dot coating lamination machine.

In Kuntai’s this series of lamination machine, people can choose:

1)To do antislip dot coating and lamination in one process

2)To do only antislip dot coating

3)To do only lamination for various materials

Kuntai can equip this series of lamination machine with various types of feeding devices, tension control devices, spreading and opening devices, pressing laminating methods, cooling devices, sway into piles designs, rewinding mechanisms, etc to realize different application requirements.

Specification

Max Material Width	1800mm, 2400mm, 3200mm, 3400mm, 5000mm, according to customers' requirement
Machine Roller Width	2000mm, 2600mm,3400mm, 3600mm,5200mm, according to customers' requirement
Machine Speed	2-25m/min, according to customers' requirement
Gap Adjustment	Servo Motor Control available on request
Heating Method	Electrical or other types heating available on request
Cooling Method	Cooling fan, cooling rollers, chiller, as per customers’ request
Voltage	220v, 380v, Customizable
Control system	PLC, Servo Motor, Inverter
Varieties	a. With or without coating function b. Different unwinding stands c. Different feeding devices d. Sway into piles or rewind into rolls

Product Feature

1

Versatility of function, capable of using either PVC or silicone.
2

High production possibility with long and good heat preserving drying zone
3

Energy saving
4

If needed, compact machine design has small floor space requirement for production line
5

Careful feeding, spreading, conveying, pressing, cooling and other treatments of material during process, reducing fabric shrinkage to the minimum extend.
6

KUNTAI designs a number of customized antislip dot patterns catering to different customer’s requirements.
7

Computerized the strength control over machines. That is why KUNTAI can make high quality lamination machine with 3400mm, 3600mm, 5200mm or wider roller width.
8

For strechable fabric, KUNTAI uses unique tension control system and conveyor system, so that the fabrics feed in order.
